High energy bills and rooms that never stay warm in winter or cool in summer are more than just annoyances—they’re red flags. In most cases, the problem isn’t just a lack of insulation. It’s deeper and harder to see: hidden air leaks, poorly sealed spaces, and inefficient or missing insulation that quietly drains your home’s energy.

Thermal imaging reveals the root of the problem. This advanced diagnostic tool uses infrared camera technology to detect temperature differences behind walls, ceilings, and floors. It gives you a clear, visual map of where your home is leaking energy—pinpointing problem areas that would otherwise go unnoticed.

That’s why smart homeowners turn to experts like Eco Tec Insulation, a leading insulation contractor in Chicago with over 19 years of trusted service. Using thermal imaging before investing in attic or wall insulation ensures your upgrades are informed and targeted—cutting waste, improving comfort, and delivering maximum energy savings.

GET A QUOTE

What Is Thermal Imaging?

Thermal imaging is a non-invasive technology that uses infrared cameras to detect temperature variations on surfaces. These cameras translate heat signatures into color-coded images, making it easy to identify areas that are warmer or cooler than their surroundings. In a home setting, this means you can “see” energy loss patterns, even through walls, ceilings, and floors.

An infrared camera picks up subtle differences in temperature—showing warmer areas in red or yellow and cooler areas in blue or purple. These visual cues help homeowners and contractors locate:

Hidden air leaks around doors, windows, or vents
Missing or underperforming insulation in walls or attic spaces
Moisture issues that may not yet be visible
Heat loss through ceiling penetrations, ductwork, or electrical outlets

Using thermal imaging before adding insulation matters because it takes the guesswork out of the process. Instead of assuming where insulation is needed, you get a visual confirmation of exactly where energy is being lost. This allows you to target insulation upgrades precisely—saving money, avoiding over-insulating areas that are already efficient, and ensuring your home stays comfortable year-round.

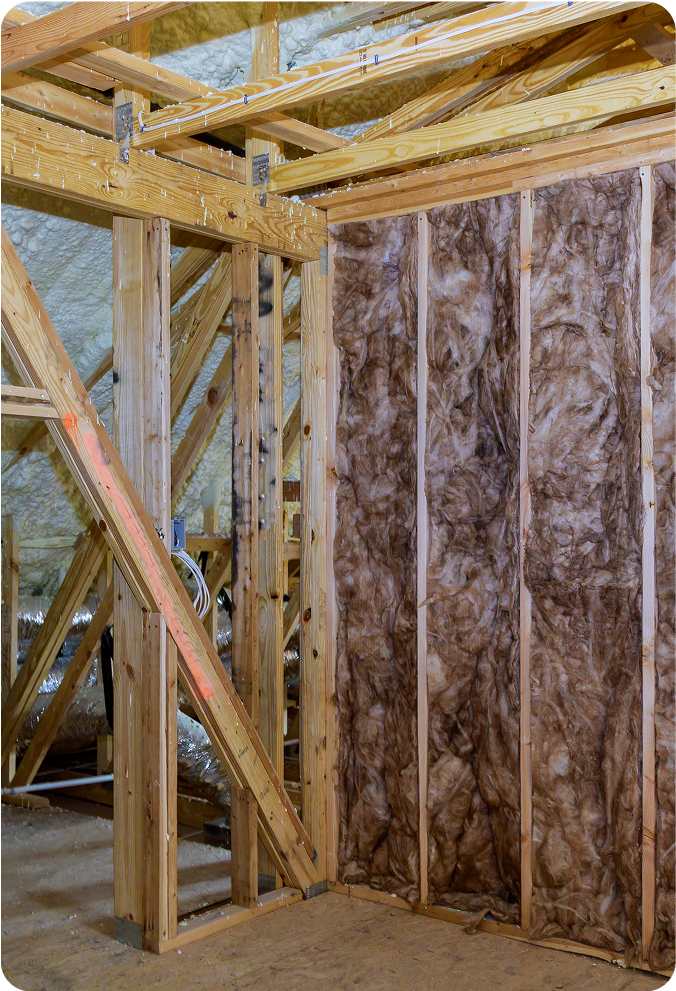

Energy Efficiency Starts with Better Data

Achieving true energy efficiency in your home involves more than just adding insulation—it requires a clear understanding of where and how your home is losing energy. Without this insight, homeowners often overspend on materials and labor without solving the real issues affecting comfort and utility bills. That’s why gathering accurate data through thermal imaging is such a powerful first step.

Thermal imaging provides a detailed visual map of your home’s energy performance. By scanning walls, ceilings, floors, and other surfaces, an infrared camera highlights temperature differences that point to problem areas. This “heat map” helps homeowners and contractors quickly identify where conditioned air is escaping or where insulation is underperforming.

Some of the most common inefficiencies revealed by thermal imaging include:

Cold spots in exterior walls where insulation may be missing or degraded
Thermal bridging, where heat flows through structural elements like studs or beams
Uninsulated corners and gaps in hard-to-reach places, such as attic eaves or behind ducts
Poorly sealed window and door frames, which allow drafts in and drive up energy costs

By identifying these issues before any upgrades begin, homeowners can prioritize the most impactful improvements. The result is smarter spending, greater comfort, and long-term energy savings—all made possible with better data.

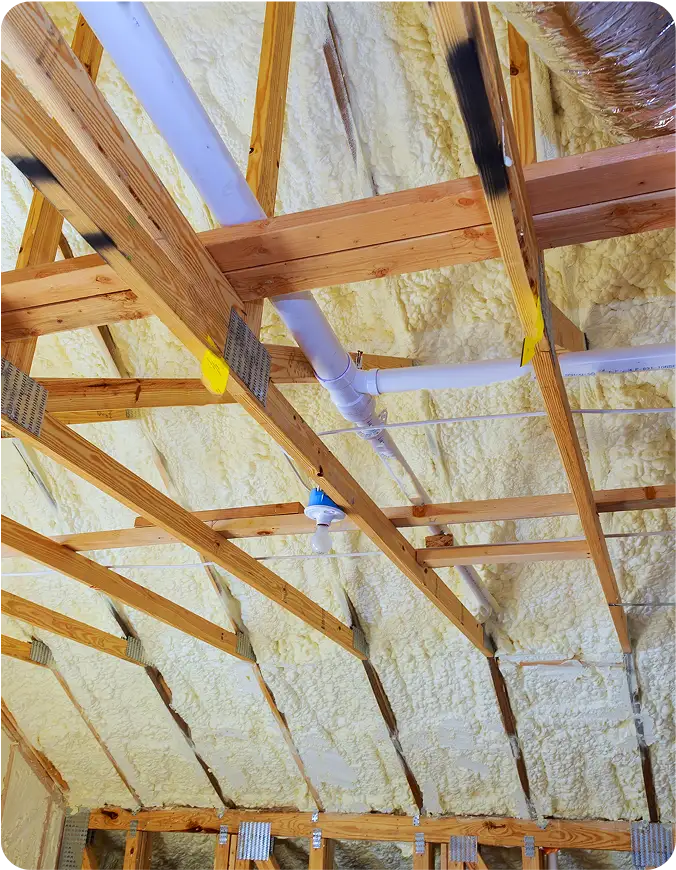

How Thermal Imaging Helps You Find Air Leaks

Air leaks are one of the most common and costly sources of energy loss in residential homes. Even small gaps around windows, doors, or electrical outlets can allow heated or cooled air to escape, forcing your HVAC system to work harder and raising your energy bills. Unfortunately, many of these leaks are hidden behind walls or in hard-to-see places. That’s where thermal imaging proves invaluable.

Using an infrared camera, thermal imaging can quickly identify temperature anomalies that point to air leakage. Areas, where warm indoor air escapes or cold outdoor air enters, will show up as distinct color changes in a thermal scan—often in spots you’d never suspect. Detecting these leaks before adding insulation is critical. Otherwise, you risk sealing in drafts and reducing the overall effectiveness of your insulation upgrade.

Typical areas where thermal imaging reveals air leaks include:

Window and door frames, especially in older homes or poorly caulked areas
Electrical outlets and switch plates on exterior walls
Baseboards and crown moldings, where gaps often go unnoticed
Recessed lighting fixtures and attic hatches, which are frequent sources of heat loss
Plumbing and wiring penetrations, where materials pass through floors and walls

By pinpointing these problem areas in advance, thermal imaging allows for targeted air sealing that complements your insulation strategy—resulting in a tighter, more energy-efficient home.

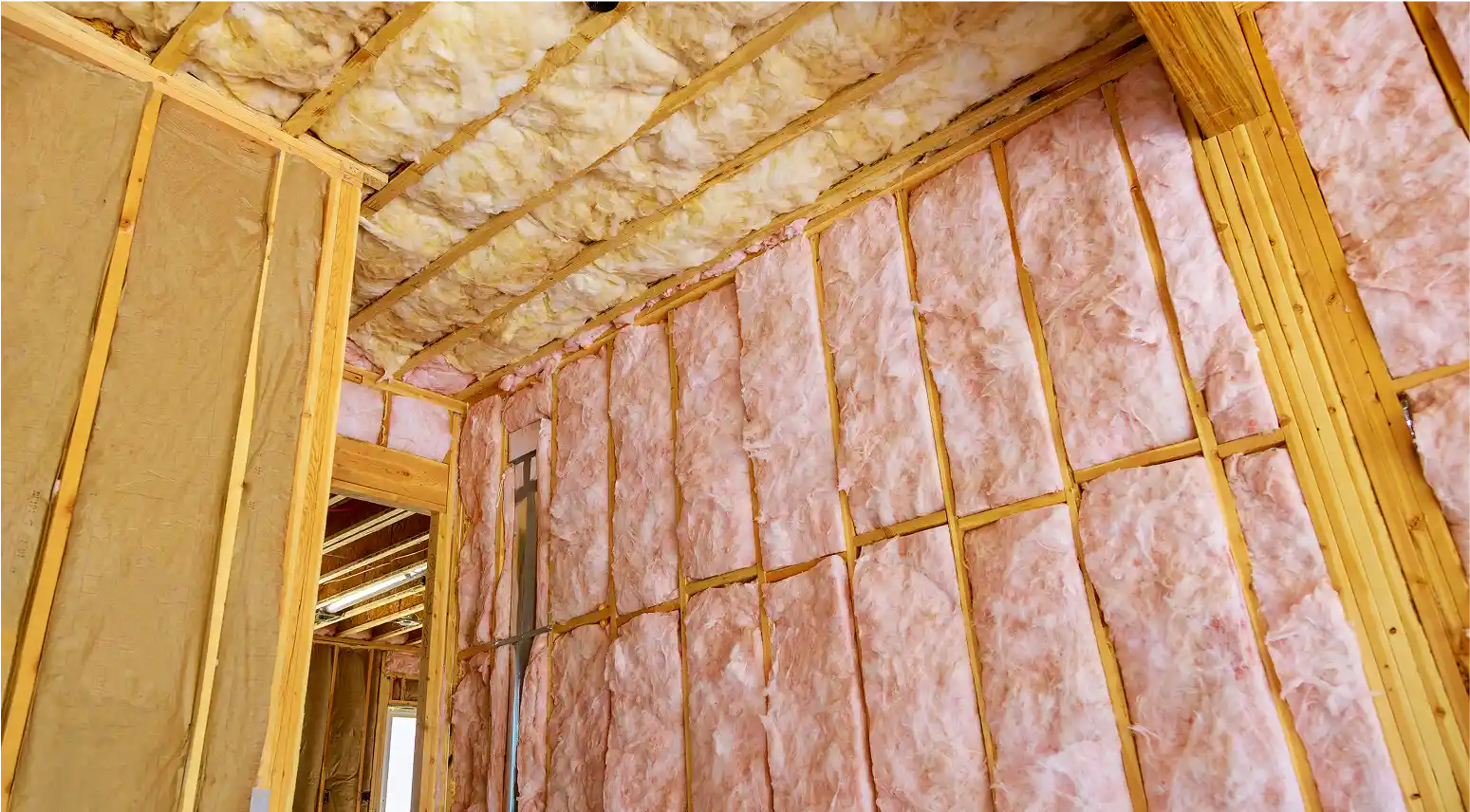

Air Sealing: A Crucial First Step

Before adding insulation, one of the smartest moves a homeowner can make is to properly seal air leaks—and doing it with the guidance of thermal imaging makes the process far more effective. While insulation slows the transfer of heat, it does nothing to stop air from flowing through gaps and cracks. That’s the job of air sealing, which involves closing off these leaks to prevent drafts and energy loss.

Thermal imaging helps distinguish between areas that need insulation and those that require sealing. Without this insight, homeowners often overlook critical leak points or mistakenly insulate over active drafts, reducing the overall effectiveness of their upgrades. A thermal camera highlights these trouble spots clearly, allowing for precise sealing where it’s needed most.

Common areas where air sealing is essential—but often missed without thermal imaging—include:

Attic hatches and pull-down stairs, which are frequently unsealed and poorly insulated
Recessed lighting fixtures, especially those that penetrate the attic
Baseboards and wall-to-floor junctions, where small gaps allow air movement
Around chimney and flue penetrations, where building materials may not fully meet
Behind bathtubs and shower units, particularly on exterior walls

By using thermal imaging to guide your air sealing efforts, you ensure that insulation won’t just sit on top of unaddressed leaks. Instead, the insulation will work in tandem with a well-sealed envelope—maximizing comfort, lowering energy bills, and setting the stage for a truly energy-efficient home.

Attic Insulation: Not Just About Adding More

When it comes to improving home energy efficiency, many homeowners assume that simply adding more insulation to the attic will solve the problem. But without knowing the current condition of your attic insulation, you could be wasting money—or even making things worse. Thermal imaging provides a clear view of what’s happening beneath the surface, helping you determine whether your existing insulation is doing its job or falling short.

An infrared scan of the attic from above or below can highlight problem areas that aren’t visible to the naked eye. For instance, insulation may appear intact but could be compressed, thinly spread, or even missing in certain sections. Additionally, thermal imaging can help detect moisture-damaged insulation, which not only reduces effectiveness but can also create mold and air quality issues.

With thermal imaging, you can identify:

Cold spots where insulation is missing or inadequate
Flattened or compressed insulation, which loses R-value over time
Wet or mold-prone insulation, often caused by roof leaks or condensation
Uneven distribution, especially near eaves, corners, and around attic fixtures

Another major benefit of a thermal scan is its ability to highlight ventilation problems. Poor attic airflow can trap heat and moisture, undermining insulation performance and shortening the life of your roofing materials. Without addressing these issues first, adding more insulation may only trap existing problems deeper into the structure.

By diagnosing what’s wrong before making changes, thermal imaging helps homeowners avoid costly mistakes and ensures any insulation upgrades are targeted, safe, and effective.

Understanding Heat Loss in Walls and Ceilings

Heat loss through walls and ceilings is one of the leading causes of high energy bills in homes—especially during extreme weather months. When warm air escapes in winter or cool air leaks out in summer, your HVAC system has to work overtime to maintain a comfortable indoor temperature. The result is not only wasted energy but also increased wear on your heating and cooling systems.

Thermal imaging makes it possible to detect these inefficiencies with precision. Using an infrared camera, you can quickly identify the exact locations where heat is escaping or where insulation is underperforming. These scans reveal problem areas that often go unnoticed, such as spots where insulation has settled, is missing, or has been improperly installed.

Common structural areas where heat loss frequently occurs include:

Rim joists, which are often poorly insulated and located where floors meet exterior walls
Garage walls, especially when they’re connected to living spaces and not properly insulated
Attic knee walls, short vertical walls in upper floors that are commonly overlooked during insulation upgrades
Vaulted or cathedral ceilings, where tight spaces limit proper insulation coverage
Wall cavities around chimneys or flues, which may have hidden gaps or fire code-mandated clearances

By using thermal imaging to uncover these areas of heat loss, homeowners can take targeted action—either by adding insulation, sealing gaps, or both. This ensures that every dollar spent on energy-saving upgrades delivers measurable results and long-term comfort.

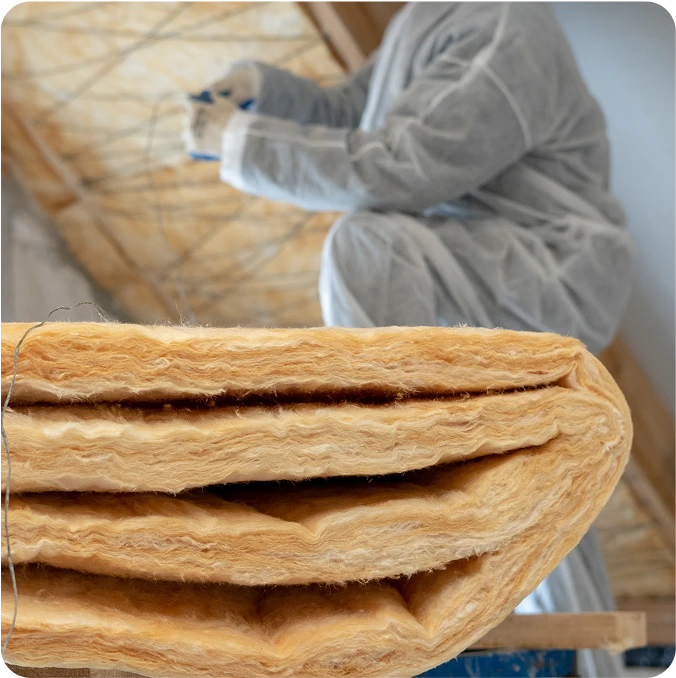

Why High Energy Bills May Be a Symptom, Not the Problem

Many homeowners assume that high energy bills are simply the result of insufficient insulation. While that can be part of the issue, the real culprit is often more complex—and invisible. Hidden inefficiencies such as air leaks, poor ventilation, thermal bridging, and moisture damage can silently drive up energy use without any obvious signs. In these cases, piling on more insulation without addressing the underlying issues won’t solve the problem and may even mask it.

Thermal imaging allows homeowners to see beyond the symptoms and identify the actual sources of energy waste. Instead of guessing, you get visual evidence of where conditioned air is escaping and where heat is being lost. This insight turns a generic solution into a focused action plan—saving time, money, and frustration.

With thermal imaging, you can avoid the costly trap of ineffective DIY upgrades by:

Pinpointing problem areas rather than insulating entire walls or attics blindly
Identifying hidden leaks and gaps that may be draining energy without your knowledge
Preventing moisture-related issues, which can reduce insulation performance over time
Recognizing outdated or underperforming materials that need replacement, not reinforcement

By treating high energy bills as a warning sign rather than the problem itself, thermal imaging helps you invest where it counts—resulting in real improvements, not temporary patches.

Is Foam Insulation Right for You?

Foam insulation—whether in the form of spray foam or rigid foam boards—offers powerful energy-saving benefits when applied correctly. It expands to fill cracks, crevices, and cavities, creating an air-tight barrier that helps block heat transfer and prevent air leaks. For many homes, it’s an ideal solution for hard-to-reach areas or places that require both insulation and air sealing.

However, foam insulation isn’t always the right choice for every area of your home. That’s where thermal imaging becomes a valuable decision-making tool. By scanning your home with an infrared camera before starting any insulation project, you can see exactly where heat is escaping and determine whether foam is the most effective and efficient option for those specific spots.

Thermal imaging helps ensure that foam insulation is used wisely by:

Highlighting gaps and voids that require air sealing in addition to insulation
Identifying moisture-prone areas where open-cell spray foam may not be appropriate
Targeting application to specific zones, avoiding unnecessary coverage of already well-insulated areas
Preventing overuse, which can drive up costs or cause ventilation problems if not properly balanced

By combining the precision of thermal imaging with the performance of foam insulation, homeowners can make smart, tailored upgrades that solve the right problems—without wasting material, time, or money.

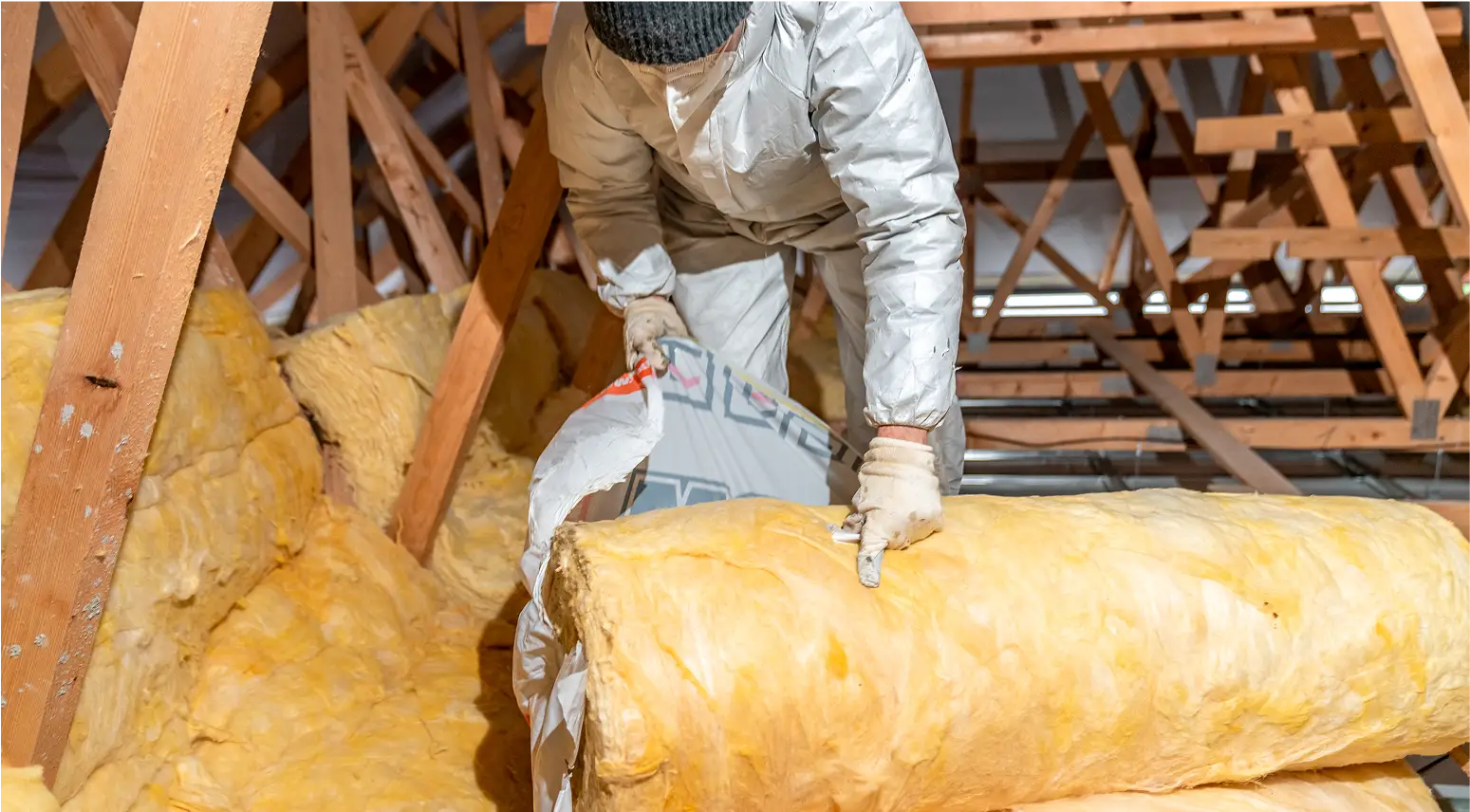

The Problem with DIY Insulation Without a Plan

While DIY insulation projects can seem like an easy way to save money, jumping in without a clear plan—or the right tools—can lead to costly mistakes. Many homeowners unknowingly make errors that not only reduce the effectiveness of the insulation but also create new problems, such as moisture buildup or poor indoor air quality. Without proper diagnostics, you’re essentially insulating blind.

Common mistakes in DIY insulation projects include:

Overfilling wall cavities or attic spaces, can compress insulation and reduce its R-value
Failing to air seal first, leaves gaps that allow drafts and moisture infiltration
Insulating over damp or moldy areas, can trap moisture and lead to structural or health issues
Ignoring ventilation, especially in attics, which can create excessive heat or humidity buildup

Thermal imaging can help DIYers avoid these pitfalls by providing a clear, visual roadmap of where insulation is truly needed—and where other actions, like air sealing or moisture control, should come first. With thermal data, homeowners can approach their projects with confidence and efficiency, reducing trial and error.

While some insulation tasks—like sealing minor air leaks or laying batts in an accessible attic—can be safely handled by a knowledgeable homeowner, other situations are best left to professionals. You should consider calling a pro if:

Thermal scans show widespread heat loss or complex patterns that are hard to interpret
You’re dealing with spray foam application, which requires specialized tools and safety precautions
There are signs of water damage or mold, which must be properly remediated before insulating

In short, thermal imaging doesn’t just make DIY insulation possible—it makes it smarter. It helps you do the right job, in the right place, with the right materials.

Energy Savings That Add Up

When insulation upgrades are guided by thermal imaging, the results aren’t just more effective—they’re measurable. Instead of guessing where to add insulation or seal leaks, you’re making precise improvements based on real data. That targeted approach translates into lower energy consumption, reduced strain on your HVAC system, and noticeable monthly savings on your utility bills.

Because thermal imaging reveals exactly where your home is losing energy, it allows you to address only the areas that truly need attention. This avoids wasting money on materials where they’re not needed and ensures that your insulation performs at its highest potential.

Thermal-guided insulation improvements contribute to energy savings by:

Eliminating major heat loss zones, such as attic hatches or rim joists
Reducing the load on HVAC systems, especially in homes with high seasonal temperature swings
Maintaining indoor comfort more consistently, so systems don’t run as frequently
Cutting down on air infiltration, which accounts for up to 30% of energy waste in many homes

By combining thermal imaging with smart insulation strategies—like properly air sealing first, choosing the right insulation type, and avoiding over-insulation—you’re setting your home up for long-term efficiency. Over time, these upgrades pay for themselves through lower heating and cooling bills, improved indoor comfort, and even increased home value.

Before insulating your attic or walls, it pays to assess first. Smart homeowners use thermal imaging to pinpoint exactly where energy is being lost—revealing hidden air leaks, insulation gaps, and moisture issues that drive up energy bills. Rather than guessing or over-insulating, infrared scans help you fix the right problems and avoid costly mistakes. For expert support, Eco Tec Insulation offers professional thermal imaging services as part of its trusted approach to insulation upgrades. To get the best results and long-term savings, book a scan before starting your project.

Schedule an Insulation Assessment Today

Before adding attic or wall insulation, make sure you’re addressing the right issues. Eco Tec Insulation offers professional thermal imaging assessments that reveal hidden air leaks, heat loss, and insulation gaps—so you can insulate smarter, not harder. Schedule an evaluation today to ensure your upgrades deliver real comfort and energy savings.

Smart insulation starts with the right information. Schedule a consultation with Eco Tec Insulation to get a thermal imaging assessment that identifies exactly where your home is losing energy. Call (847) 675-1400 today to ensure your attic or wall insulation upgrade is targeted, effective, and built for long-term savings.
