Best Time of Year to Use Thermal Imaging for Insulation Planning  (And Why It Matters)

Thermal imaging is a diagnostic technology that uses infrared cameras to visualize heat patterns in buildings. In the context of energy efficiency and insulation, it serves as a powerful tool to detect hidden inefficiencies—such as air leaks, missing insulation, or thermal bridging—that aren’t visible to the naked eye. By translating temperature differences into color-coded images, thermal imaging reveals exactly where a home or commercial space is losing or gaining heat.

But while the technology is advanced, its effectiveness depends heavily on when the scan is performed. Thermal imaging relies on temperature contrast between the interior and exterior of a building, and if that difference is too small, problem areas may not show up clearly. Choosing the right time of year—when this contrast is at its peak—is critical for getting accurate, actionable results. For those planning insulation upgrades in the Chicago area, working with experienced professionals like Eco Tec Insulation, a certified roofing and insulation contractor with over 19 years of trusted service, ensures that thermal imaging is used strategically for maximum impact.

GET A QUOTE

Thermal Imaging: What It Is and Why Timing Matters

Thermal imaging is a non-invasive method that uses infrared cameras to detect heat signatures on the surfaces of buildings. These cameras translate invisible infrared radiation into visual images that display temperature variations. Warmer areas appear as brighter colors, while cooler areas appear darker, allowing inspectors to pinpoint where heat is escaping in the winter or infiltrating in the summer. This technology is commonly used in energy audits, insulation assessments, and building diagnostics.

A key factor that determines the accuracy of a thermal imaging scan is temperature contrast—the difference between indoor and outdoor temperatures at the time of the scan. The greater the contrast, the more dramatic and visible the heat flow becomes. Without sufficient contrast, areas with poor insulation or air leaks may not be easily distinguishable from the rest of the structure.

Here’s why timing is so important:

Thermal imaging is most accurate when there’s a strong temperature difference between inside and outside—typically at least 20°F (11°C).
Seasonal timing enhances contrast:
- Winter is ideal in cold climates because indoor heating makes heat loss visible.
- Summer is optimal in hot climates because air-conditioned interiors show heat intrusion.
Shoulder seasons like spring and fall often lack the necessary contrast, making it harder to identify insulation flaws or air leaks.

In short, while thermal imaging is a powerful diagnostic tool, its effectiveness depends on aligning the scan with the right environmental conditions—which means timing matters more than many property owners realize.

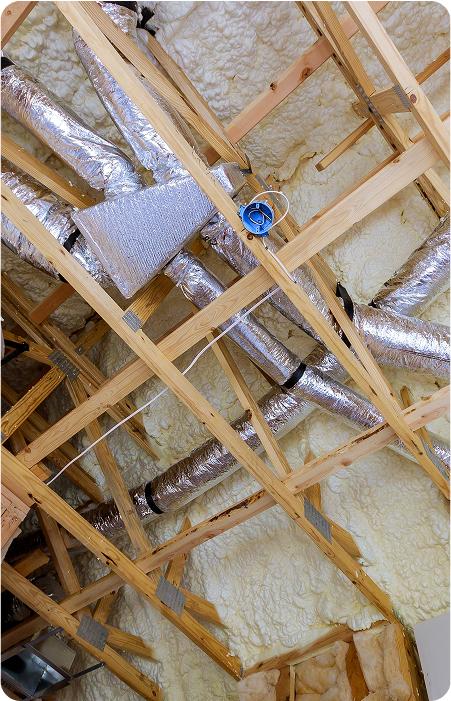

Thermal Imaging Surveys: When They’re Most Effective

A professional thermal imaging survey is a comprehensive inspection that uses infrared technology to evaluate a building’s thermal performance. Conducted by trained technicians, these surveys typically include a full scan of exterior walls, roofs, windows, doors, attics, and basements. The goal is to detect energy loss, moisture intrusion, and insulation deficiencies without the need for invasive methods. After the survey, homeowners or property managers receive a detailed report that includes thermal images, interpretations, and prioritized recommendations for improvement.

The effectiveness of a thermal imaging survey is directly tied to the season in which it’s performed. Because thermal cameras visualize heat transfer, the greater the temperature difference between inside and outside, the more clearly problem areas show up. The best time to schedule a survey depends on your local climate:

Winter (for cold climates):
- Heated indoor spaces make it easy to detect where warmth is escaping.
- Ideal for finding gaps in attic insulation, drafty windows, and poorly sealed doorways.
- Especially useful when outdoor temperatures drop below freezing.
Summer (for hot climates):
- Air-conditioned interiors contrast sharply with outdoor heat.
- Highlights where heat is entering through walls, ceilings, or uninsulated spaces.
- Excellent for evaluating radiant heat gain and solar exposure points.

In contrast, spring and fall are often less suitable for thermal imaging surveys due to mild temperatures that reduce thermal contrast. When indoor and outdoor temperatures are too close, it becomes difficult to differentiate between normal conditions and actual energy loss. While there are exceptions—such as unseasonal heat waves or cold snaps—generally, these shoulder seasons are not ideal for capturing clear thermal data.

For the most accurate and actionable results, thermal imaging surveys should always be scheduled during times of year when temperature extremes naturally enhance the effectiveness of the scan.

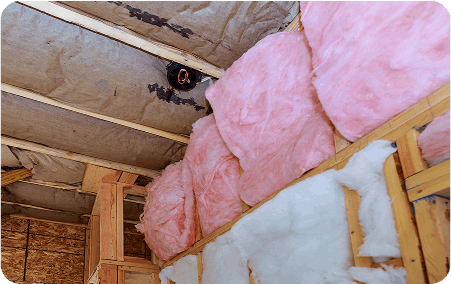

Missing Insulation: How Thermal Imaging Finds It

Missing or insufficient insulation is one of the most common causes of energy loss in homes and commercial buildings—and it often goes unnoticed until energy bills spike or comfort levels drop. Thermal imaging is one of the most effective tools for uncovering these hidden gaps. By capturing heat patterns on walls, ceilings, and floors, thermal imaging can quickly identify areas where insulation is lacking, damaged, or improperly installed.

Certain parts of a building are especially prone to insulation issues, including:

Attics and rooflines – where insulation can settle, shift, or be forgotten entirely during renovations.
Behind exterior walls – particularly in older buildings or during poorly executed retrofits.
Crawl spaces and basements – which are often overlooked but play a key role in whole-home energy performance.
Around windows, doors, and electrical outlets – where even small gaps can lead to significant air leakage.

Thermal imaging detects these flaws by making temperature differences visible. Depending on the season, these differences appear in different ways:

In winter: Cold spots and drafts show up as dark areas on the thermal camera, indicating where warm indoor air is escaping or where cold outdoor air is seeping in.
In summer: Hot spots appear where heat is infiltrating the building, particularly through uninsulated walls, ceilings, or around HVAC ducts.

Identifying missing insulation before major seasonal weather changes is key. Here’s why:

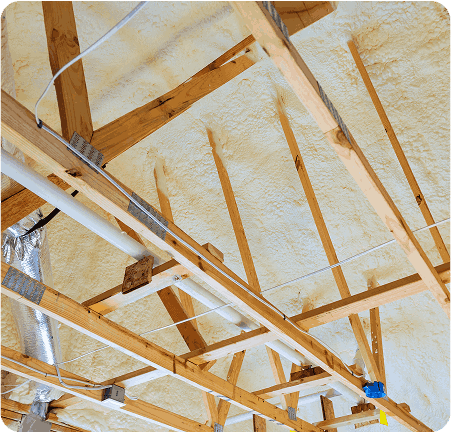

Planning is easier and more cost-effective before extreme temperatures hit, giving you time to schedule insulation upgrades.
Contractors can address specific areas without over-insulating, which reduces waste and labor costs.
You’ll feel the comfort benefits faster when improvements are made ahead of hot summers or cold winters.

Ultimately, thermal imaging removes the guesswork from insulation upgrades by pinpointing exactly where help is needed—making your energy efficiency efforts smarter and more strategic.

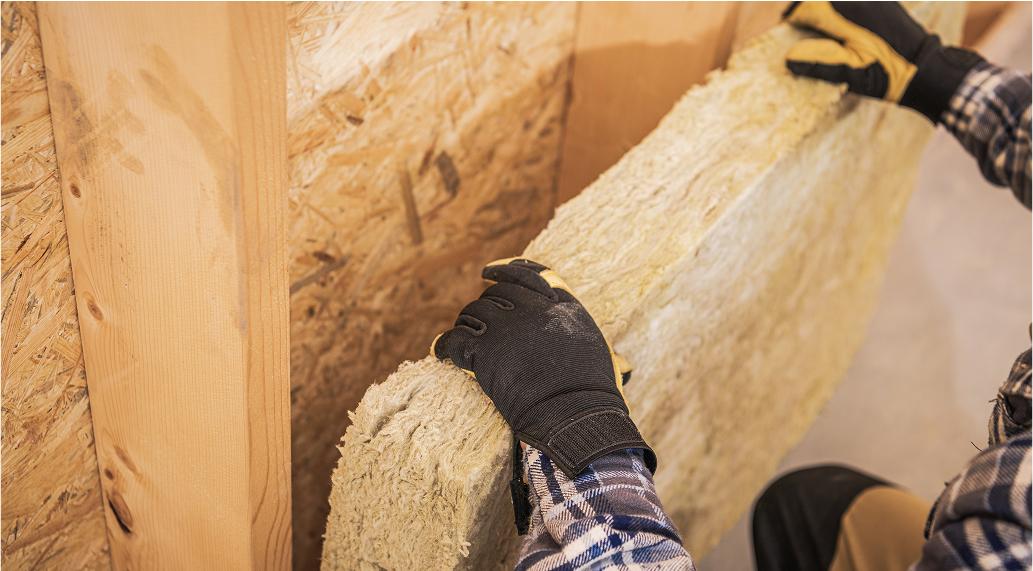

Weather Conditions: Key Factors for Accurate Scans

While thermal imaging is a highly effective method for detecting insulation problems, its accuracy can be significantly impacted by weather conditions. Because the technology relies on surface temperatures to detect heat flow, any external factors that alter or mask those temperatures can distort results. That’s why it’s important to schedule thermal imaging during conditions that enhance clarity and consistency in readings.

Ideal weather conditions for thermal imaging include:

Clear skies – Overcast weather can cause surface temperatures to equalize, which reduces thermal contrast.
Low wind – Wind can artificially cool or warm surfaces, creating misleading readings.
No recent rain – Moisture can absorb and retain heat, skewing temperature readings and hiding insulation gaps or thermal bridging.

In addition to weather, time of day plays a crucial role in scan quality. Infrared cameras are sensitive to surface temperatures, which are heavily influenced by sunlight during the day. To avoid solar loading (when surfaces retain heat from direct sun exposure), it’s best to schedule scans during:

Early morning, before the sun has significantly warmed the building envelope.
Evening, after the sun has set and surfaces begin to cool down naturally.

Poor weather or improper timing can reduce the reliability of a thermal scan by:

Masking insulation gaps that would otherwise be visible with proper contrast.
Creating “false positives” due to wind chill or residual heat from sun exposure.
Making it harder to interpret results, leading to inaccurate conclusions and wasted insulation efforts.

By choosing the right weather and timing conditions, property owners and inspectors can ensure thermal imaging delivers clear, actionable insights—helping them make smarter, more cost-effective decisions when planning insulation upgrades.

Planning Insulation Upgrades with Thermal Imaging Insights

One of the greatest advantages of thermal imaging is its ability to provide clear, visual evidence of where your building is losing or gaining heat. Instead of relying on assumptions or blanket approaches, you can use scan results to strategically plan your insulation upgrades. This targeted approach ensures that you’re directing your budget and efforts to the areas that need it most.

Once the thermal imaging survey is complete, the images and data help you identify the weak spots in your building envelope. These may include:

Uninsulated attic sections or rafters
Cold air infiltration around windows and doors
Heat loss through exterior walls or foundation gaps
Poorly insulated HVAC ducts or plumbing penetrations

With this insight, you can:

Prioritize upgrades in the areas with the most significant heat loss or gain.
Avoid over-insulating areas that are already performing well, saving money on materials and labor.
Coordinate with insulation contractors more efficiently, using images to explain the scope of work and justify specific recommendations.

This precision leads to better financial outcomes. By preventing unnecessary or misplaced insulation, thermal imaging helps maximize the return on investment (ROI) for your energy upgrades. You’re not just spending money to insulate—you’re investing in the areas where it will have the biggest impact on comfort, energy savings, and long-term performance.

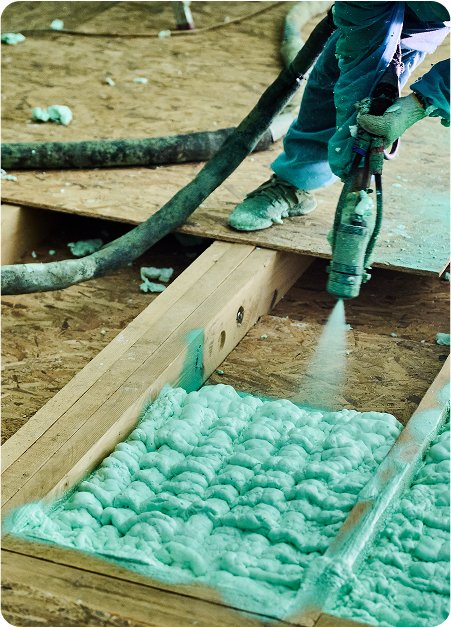

Benefits for Commercial and Residential Properties

Thermal imaging offers valuable benefits for both commercial and residential property owners looking to improve energy efficiency and reduce long-term operating costs. Whether you’re managing a multi-unit facility or a single-family home, incorporating thermal scans into your insulation planning can lead to smarter upgrades and measurable savings.

For commercial buildings, where energy loads are typically higher and square footage is greater, thermal imaging can deliver a strong return on investment by:

Identifying large-scale inefficiencies that would otherwise go unnoticed, such as heat loss through expansive roofing or curtain walls.
Reducing HVAC strain by exposing areas where conditioned air is escaping or being compromised.
Helping facility managers prioritize repairs or upgrades without disrupting daily operations.

Residential properties also benefit from thermal imaging, especially when used to:

Detect drafts, insulation gaps, and ductwork issues that lead to discomfort and uneven heating or cooling.
Improve HVAC efficiency by targeting specific areas for insulation, reducing the workload on systems.
Lower monthly utility bills by sealing leaks and improving the home’s overall energy envelope.

In both settings, thermal imaging is also ideal as part of a seasonal maintenance plan or energy audit, especially before extreme weather seasons. Scheduling a scan in the winter or summer ensures optimal contrast and allows for insulation upgrades to be completed before heating or cooling demand peaks.

By making thermal imaging part of your building’s routine assessment, you gain a clearer understanding of where energy is lost—and how to fix it with precision and confidence.

Thermal imaging is most effective when done during seasonal extremes—winter in cold climates and summer in hot ones—when the contrast between indoor and outdoor temperatures is highest. Accurate results depend on key factors like weather, timing, and temperature differences, all of which impact a scan’s clarity. By scheduling a thermal imaging survey under ideal conditions, property owners can pinpoint insulation issues with precision and make smarter, more cost-effective upgrades that maximize energy savings and comfort. For reliable results and expert guidance, Eco Tec Insulation, a leading insulation contractor in Chicago with over 19 years of trusted service, can help ensure your scan is both timely and effective.
